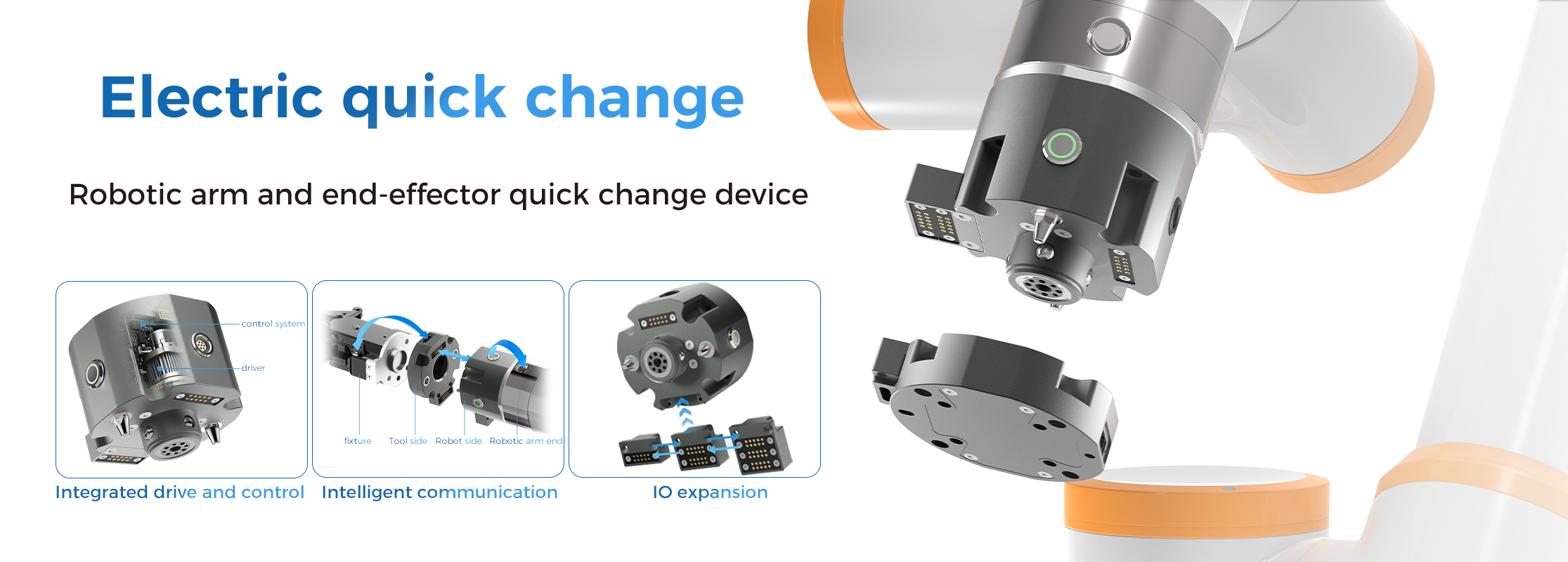

PRODUCT INTRODUCTION

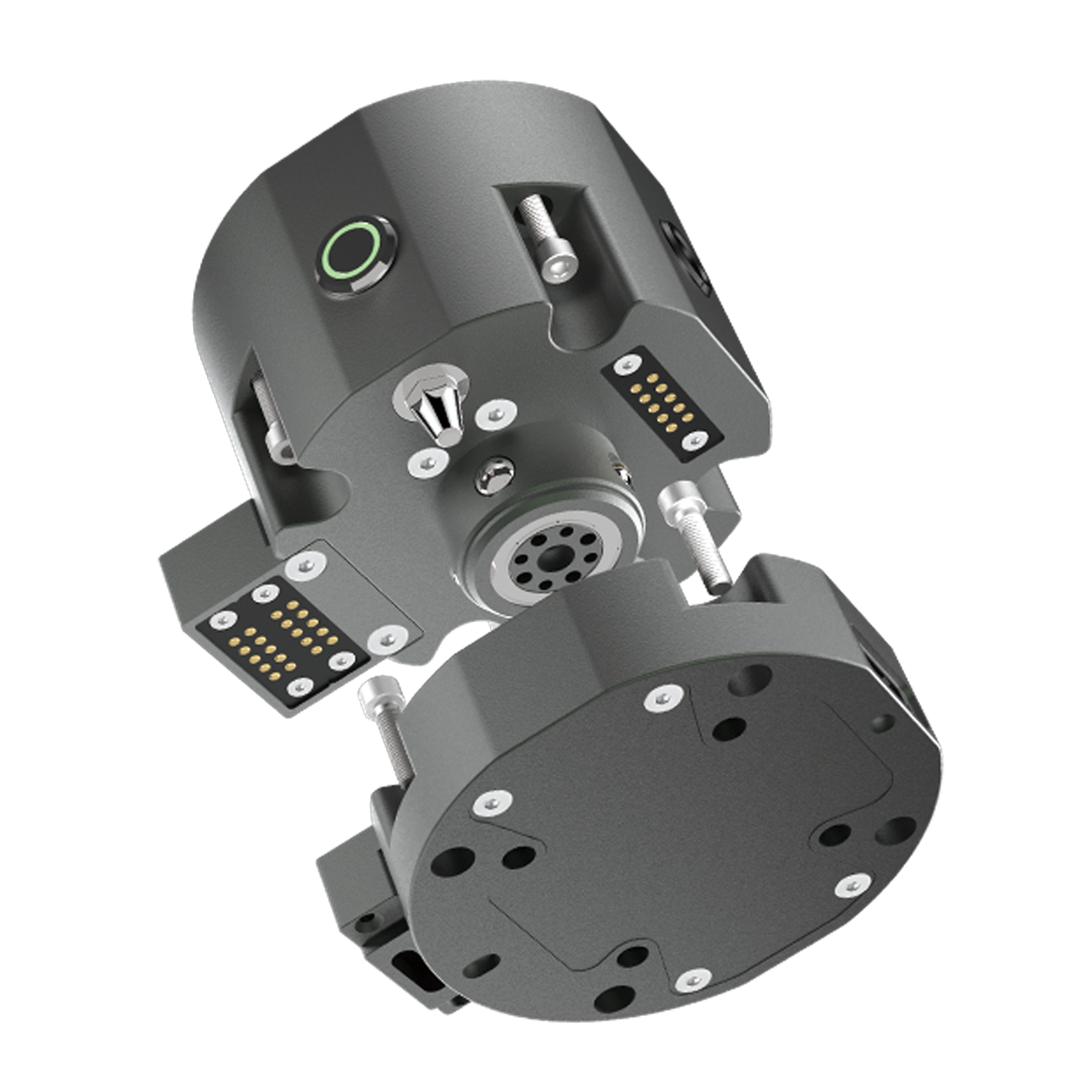

QuickLink It is an innovative quick-change device for robotic arms and end tools, specially designed to solve the software and hardware obstacles between collaborative robotic arms and end effectors. Using electric drive locking technology, no air pump is needed to achieve plug-and-play and tool-less quick replacement. It can still be firmly locked even when the power is off, ensuring safety. Compatible with a variety of robotic arms and tools.
PRODUCT FEATURES
Plug And Play
Adaptation Protocol
Electric Control Locking
Quick Replacement
High-Load
Power Off Maintenance
High-Precision
Actuator State Perception
Secondary Development
High Performance-Price Ratio
Integrated Drive Control System
Compact In Size

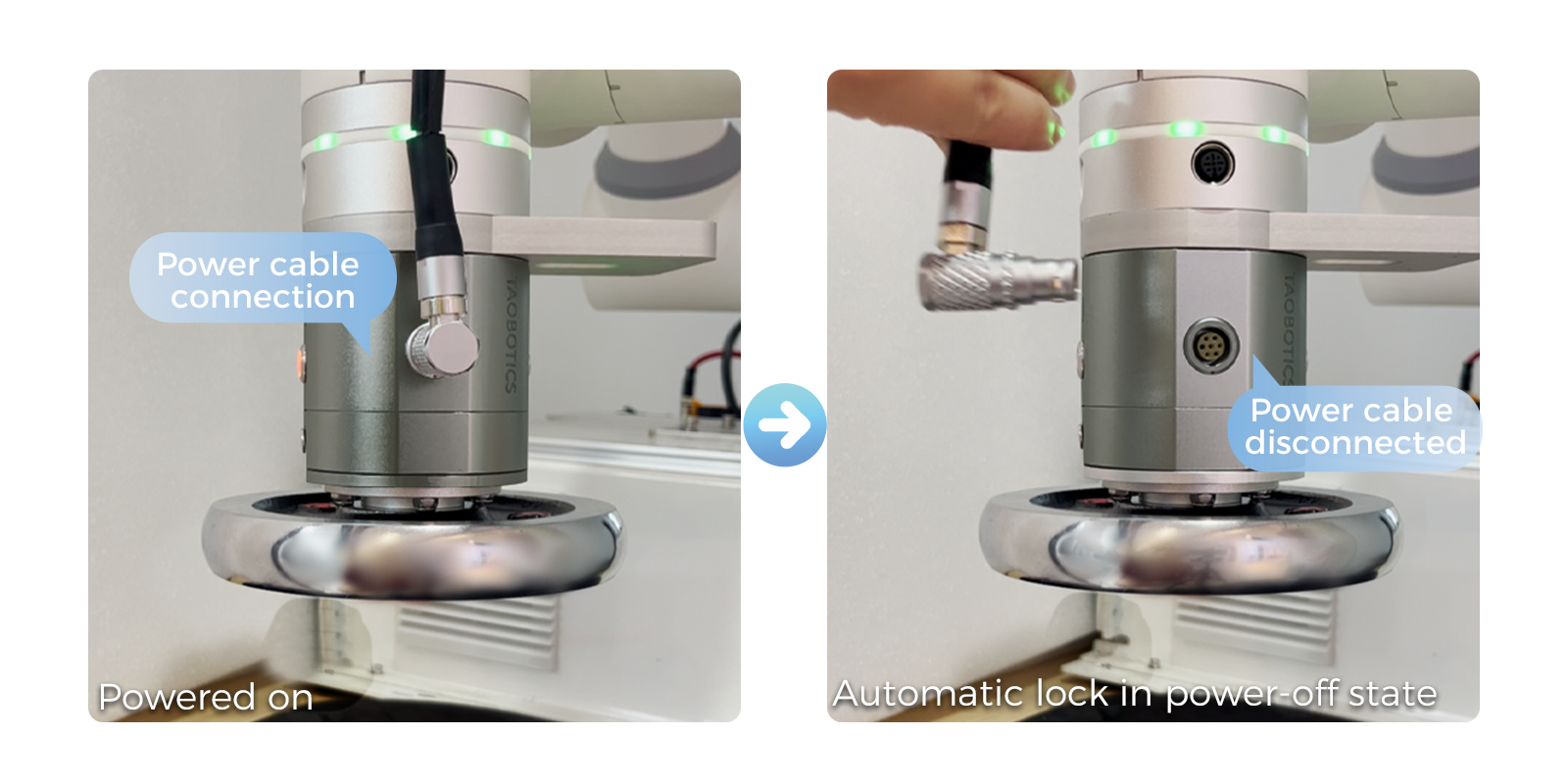

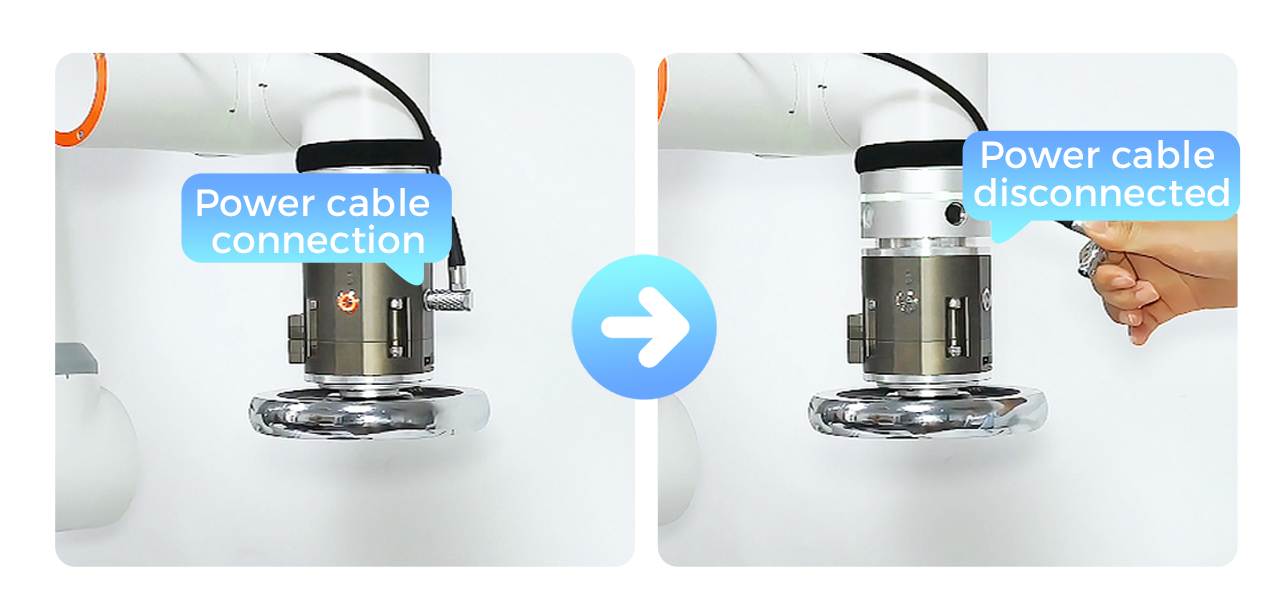

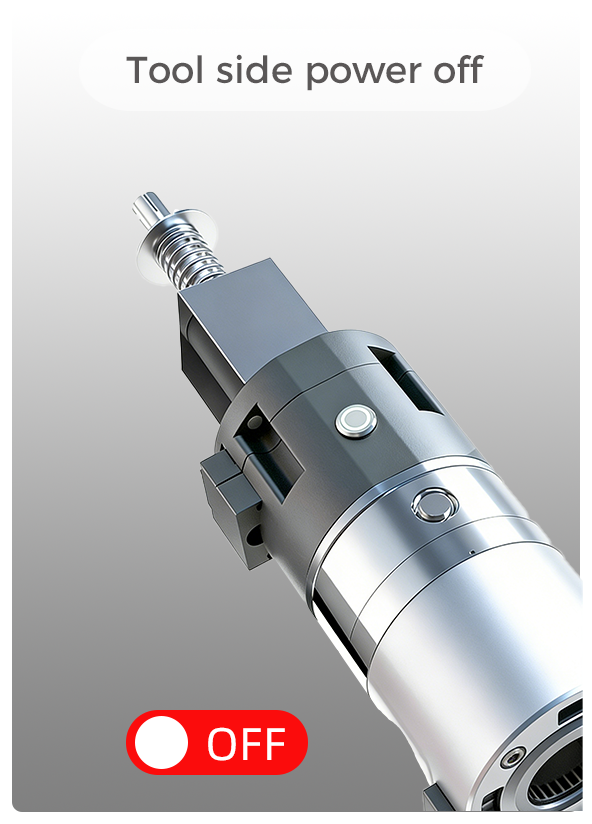

Power off and secure locking
The built-in power-off holding mechanism can quickly respond to power outages, maintain the current clamping state unchanged, effectively prevent workpiece detachment, and thus avoid potential safety risks.
Small volume, large clamping force
Highly integrated and compact in size, it can easily integrate into various usage scenarios. Having excellent load-bearing capacity, it can stably and reliably transmit high torque and high load of the robotic arm.

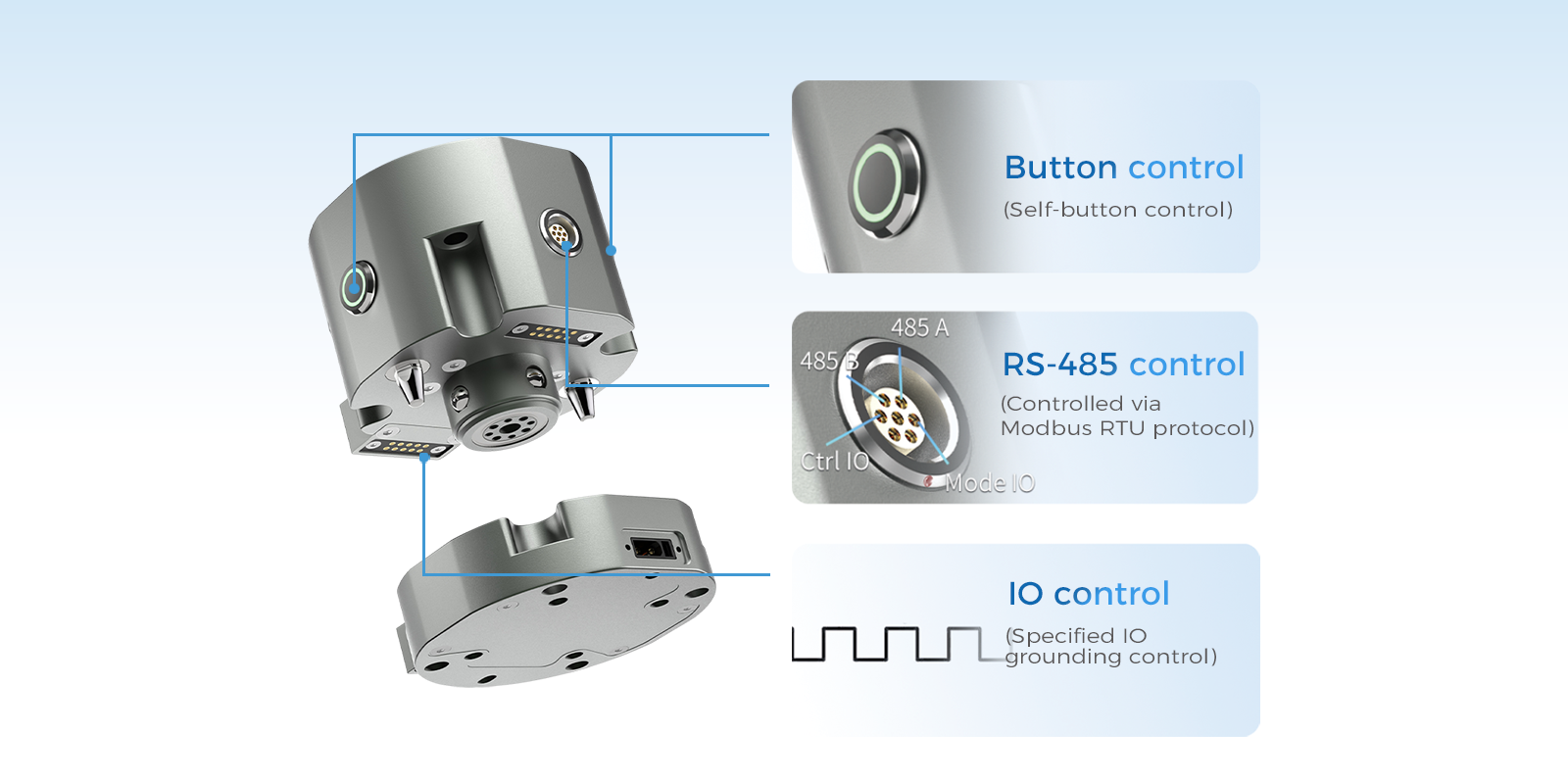

Built in drive control, integrated mechanical and electrical control

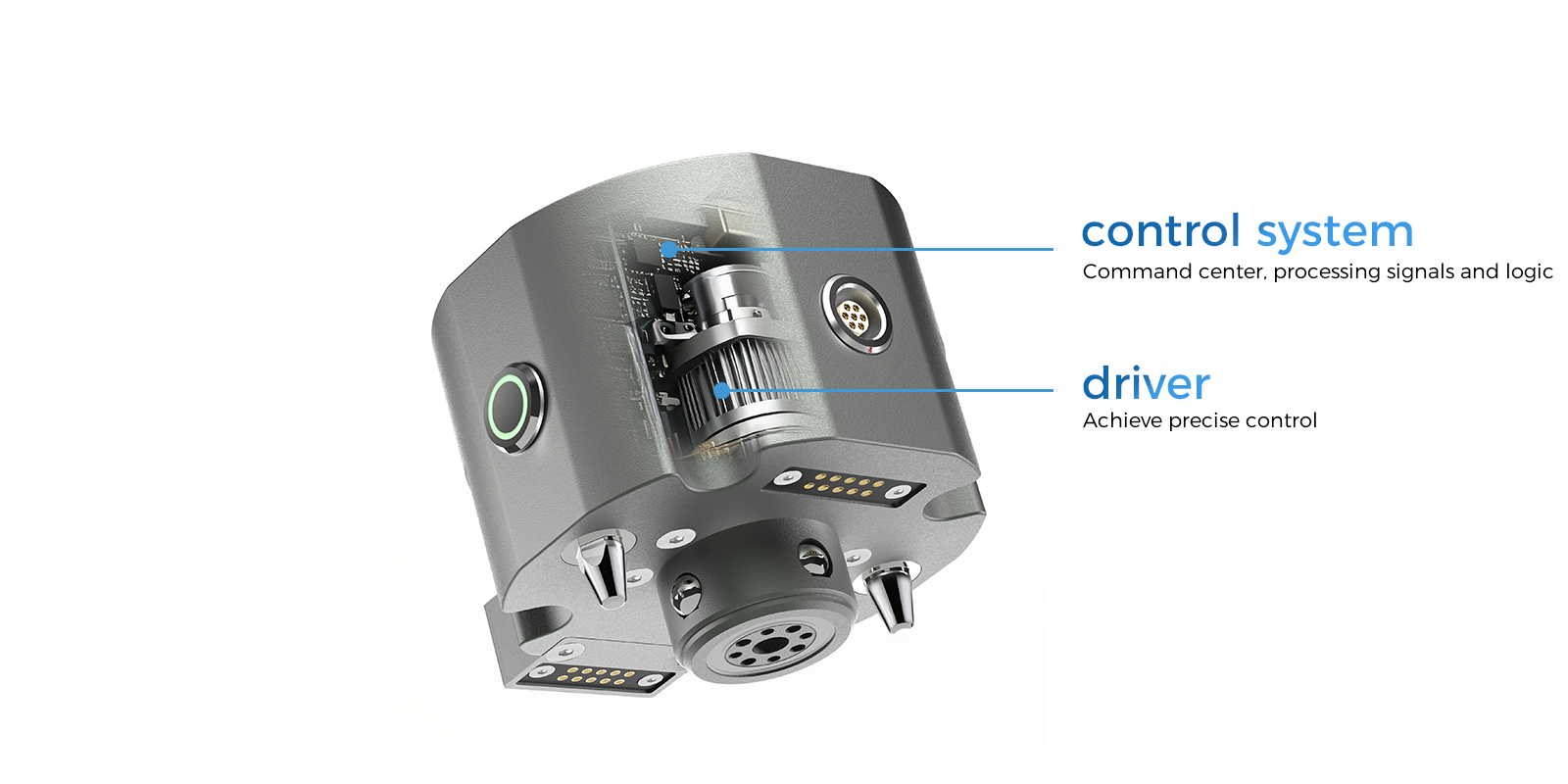

The driver and control system are integrated inside the device, reducing cable connections and almost zero signal transmission delay, improving the overall compactness and reliability of the system.

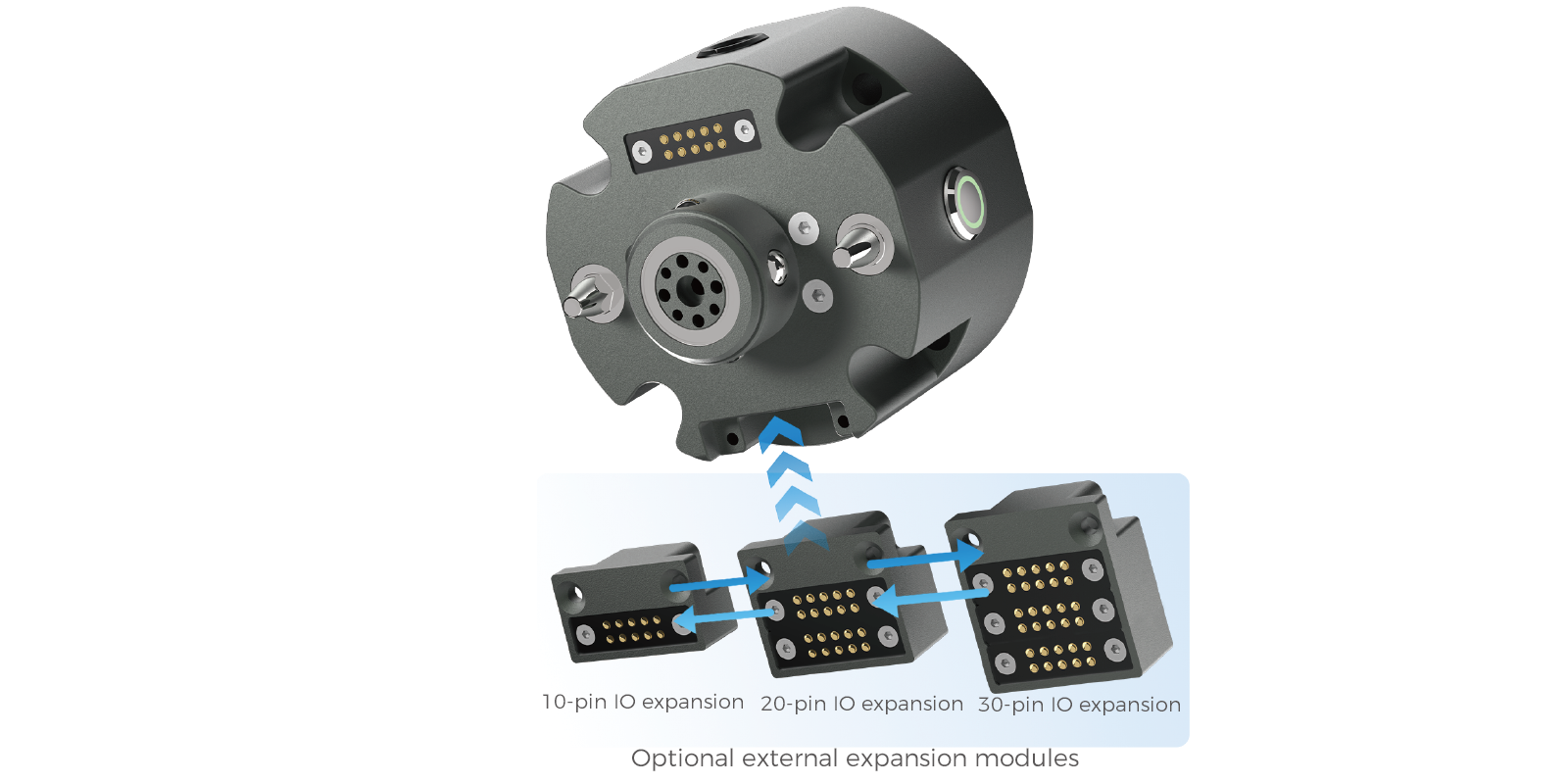

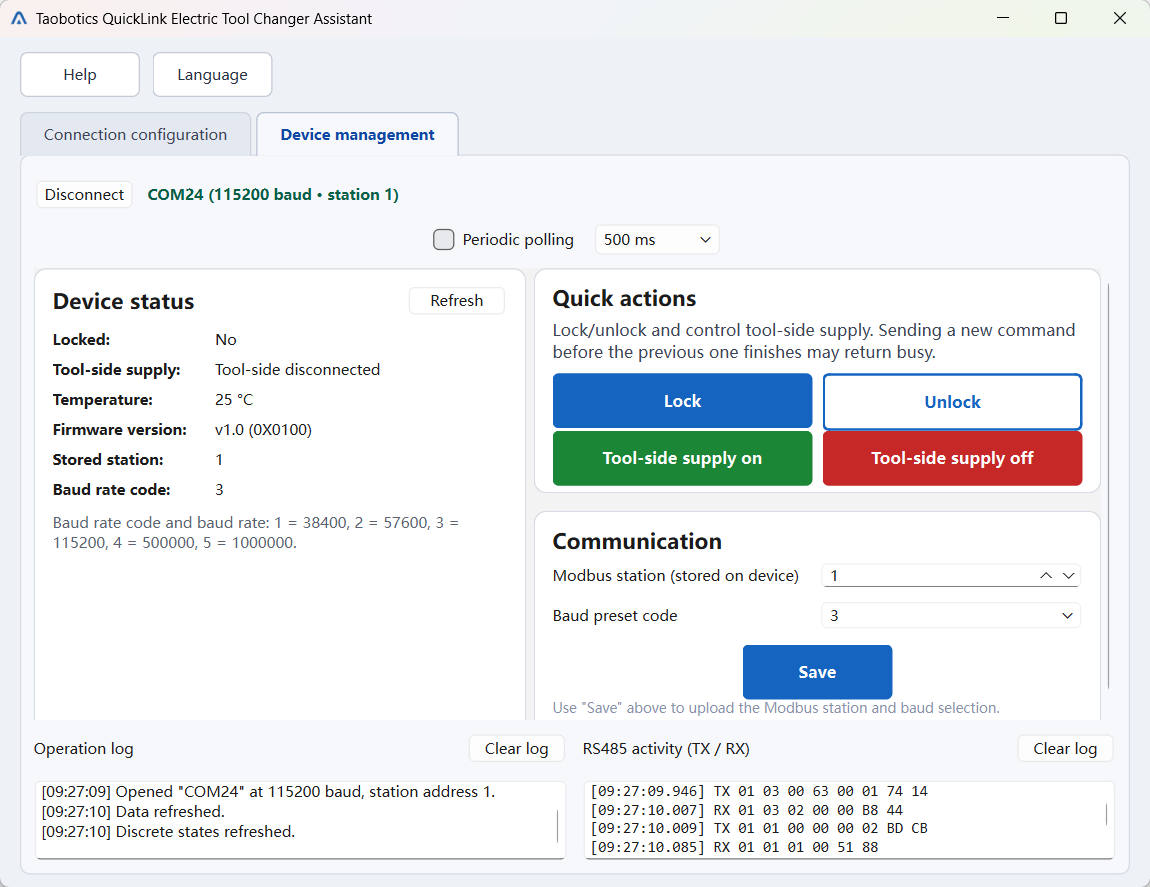

Secondary development support

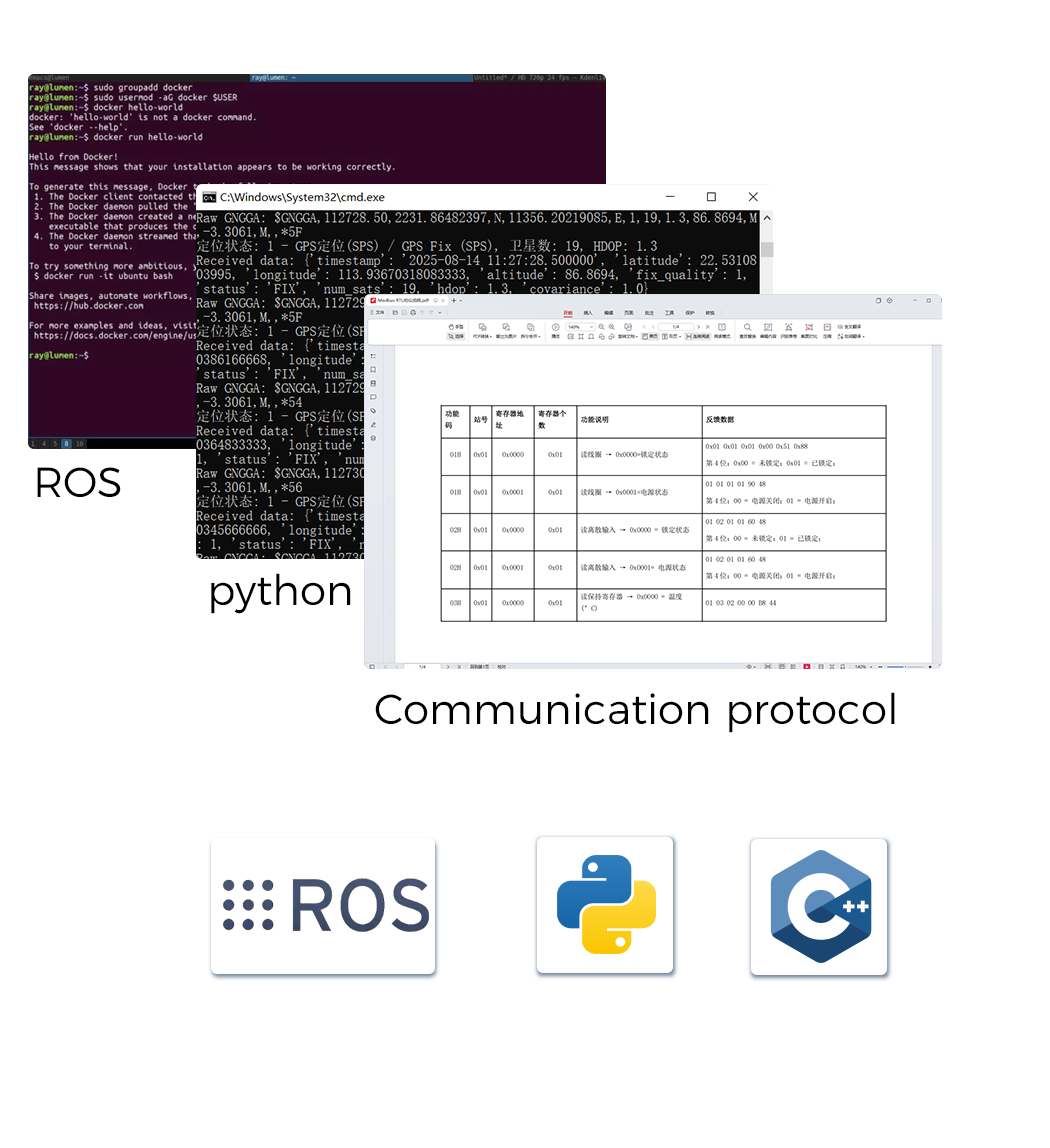

Provides a comprehensive development kit (SDK), sample code, detailed documentation, and professional technical support. The device can be customized according to specific application requirements, whether it is adding new functions, optimizing existing processes, or integrating third-party systems.

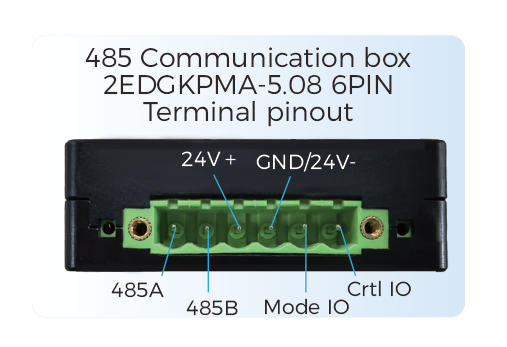

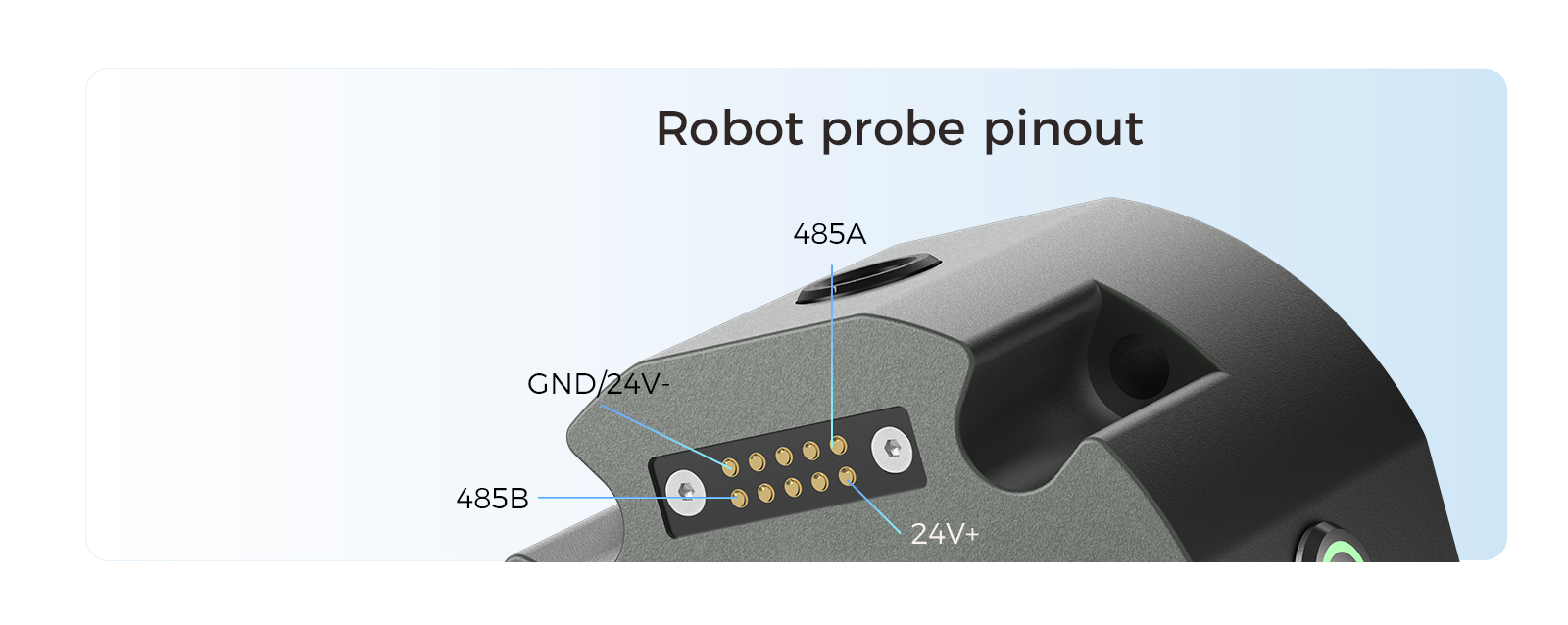

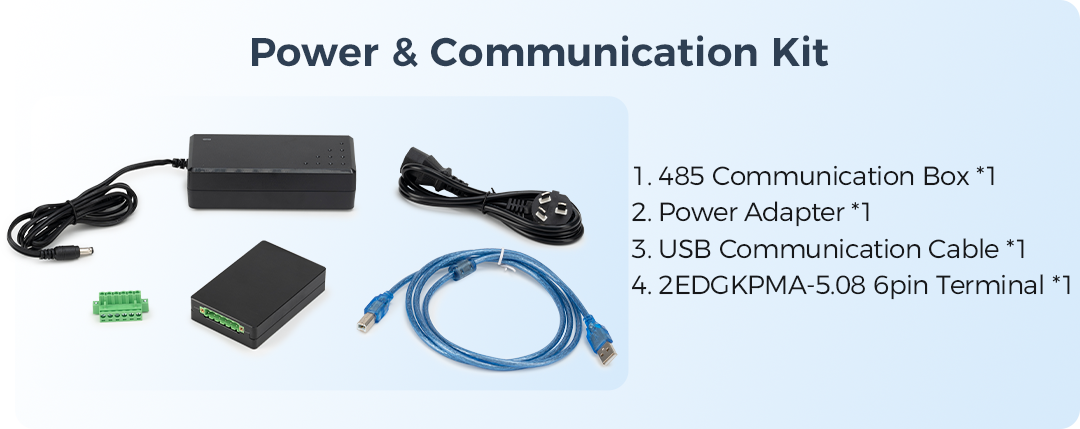

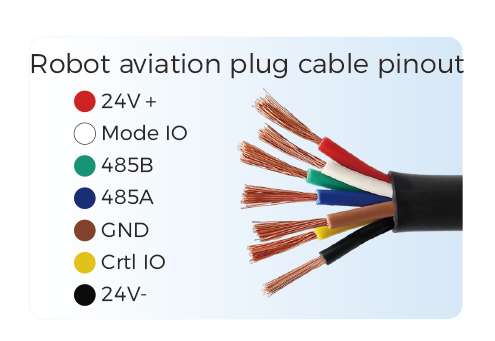

nformation feedback and industrial interconnection
Real time acquisition and feedback of device operating status information for real-time adjustment and optimization. Supporting multiple mainstream industrial communication protocols, it can easily integrate into existing industrial network environments and seamlessly connect with various devices, control systems, and remote servers.
Designer and manufacturer of mobile robots, shipped to over 50 countries worldwide
Electric drive locking technology

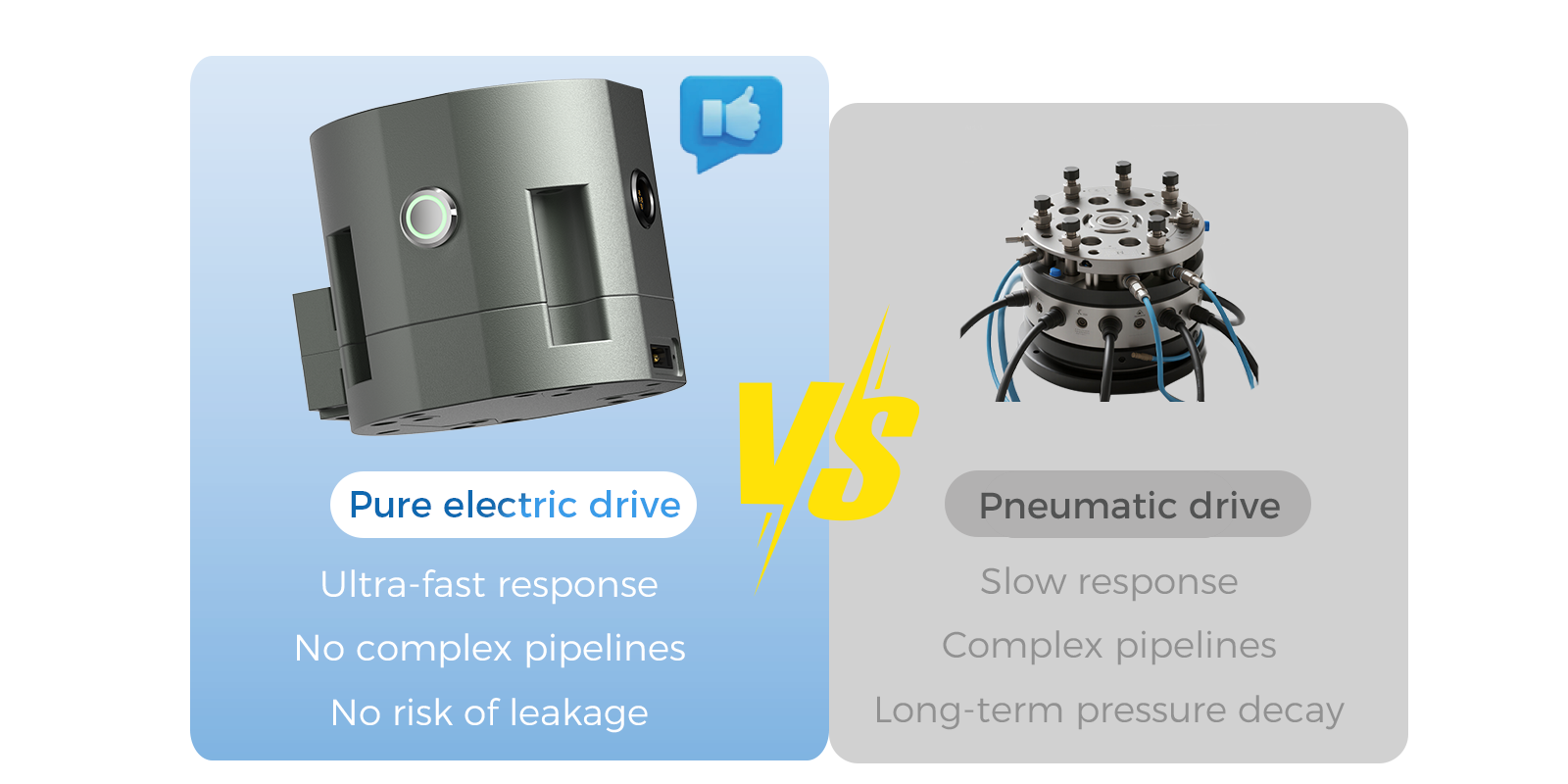

Adopting electric drive locking technology, the robotic arm moves more smoothly and accurately when changing tools or fixtures. Compared to pneumatic drives, additional pneumatic pumps and their supporting equipment are often required, which not only reduces the manufacturing cost and installation difficulty of the equipment, but also reduces the possibility of malfunctions caused by unstable pneumatic systems.

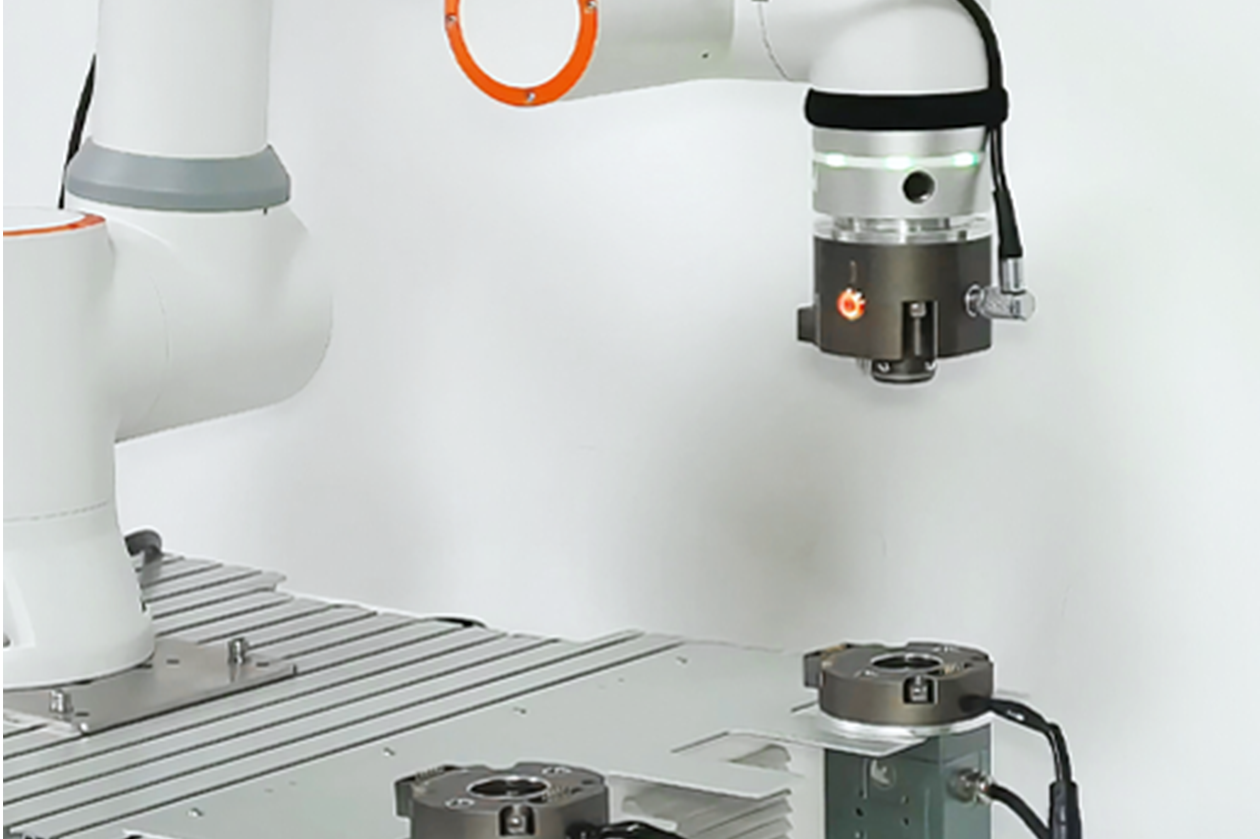

Plug And Play
QuickLink adopts electric drive locking technology, which does not require an air pressure pump. Simply insert the new tool directly into the interface of Lingxi Smart Swap, without the need for complex adjustment or calibration processes. Realize plug and play and tool free quick replacement of end tools.

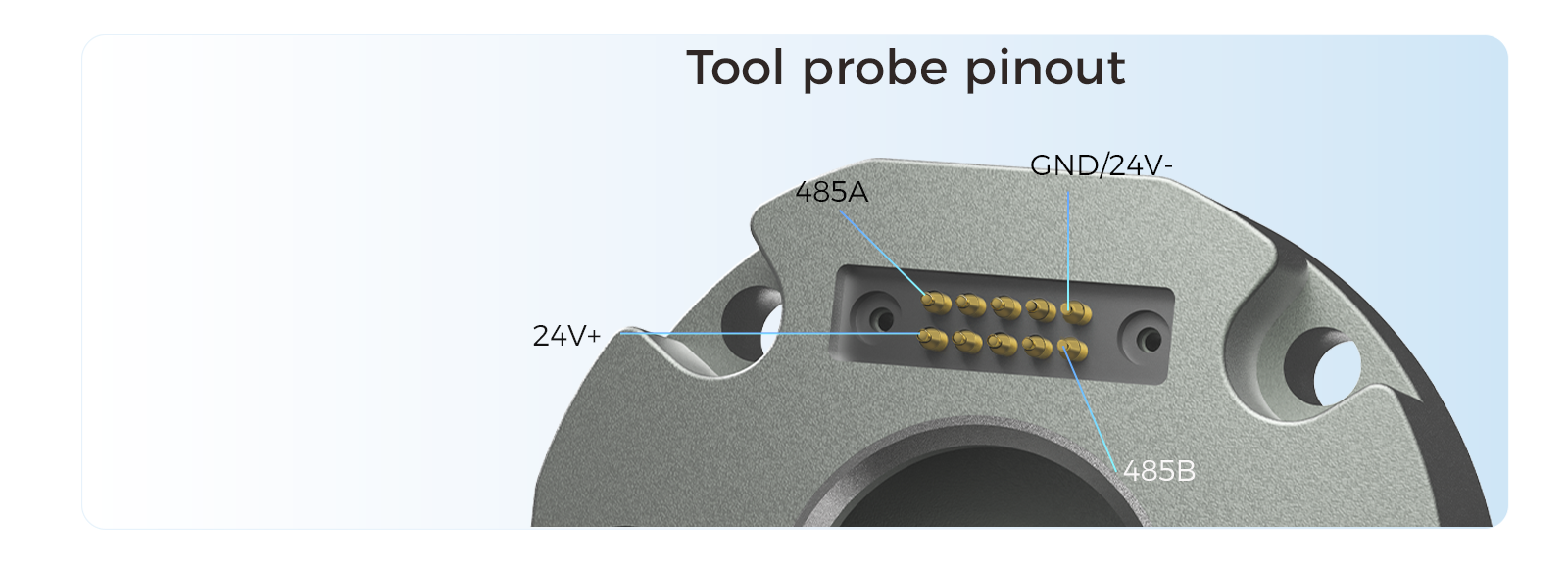

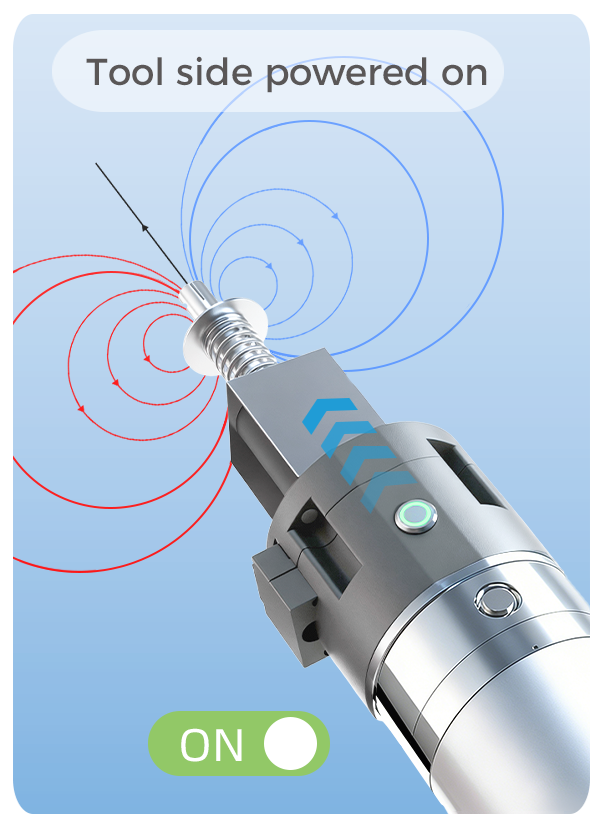

Self parsing adaptation protocol

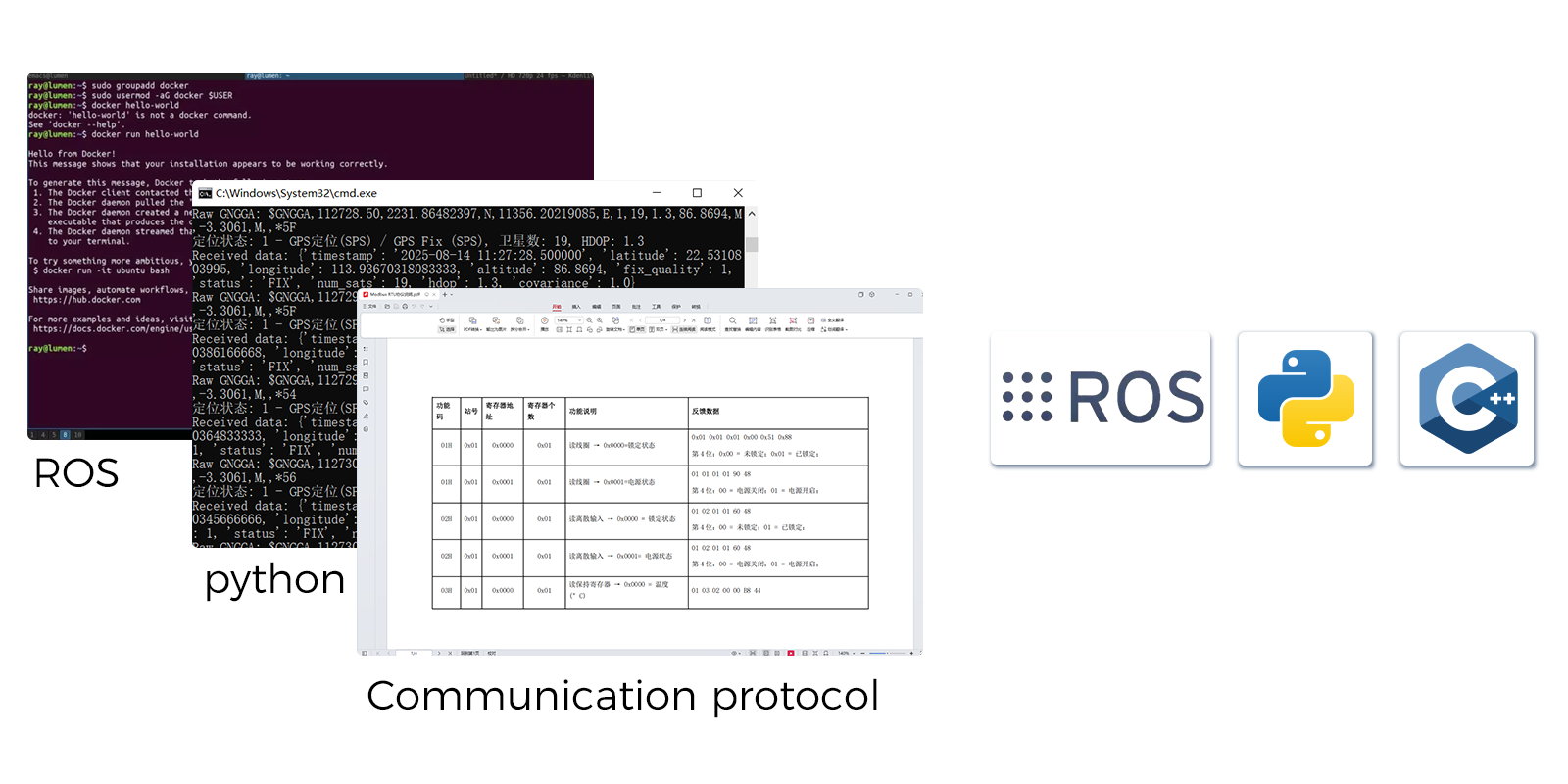

Automatically adapt to end tools, identify and parse the communication protocol used for communication with end tools, and establish stable and reliable communication connections according to protocol specifications. Communication parameters can be adjusted based on the characteristics of the end tool without manual intervention.

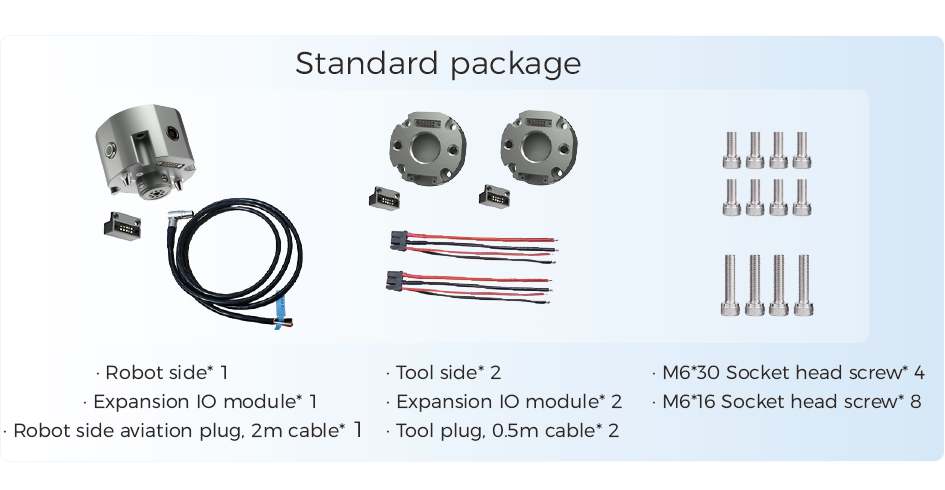

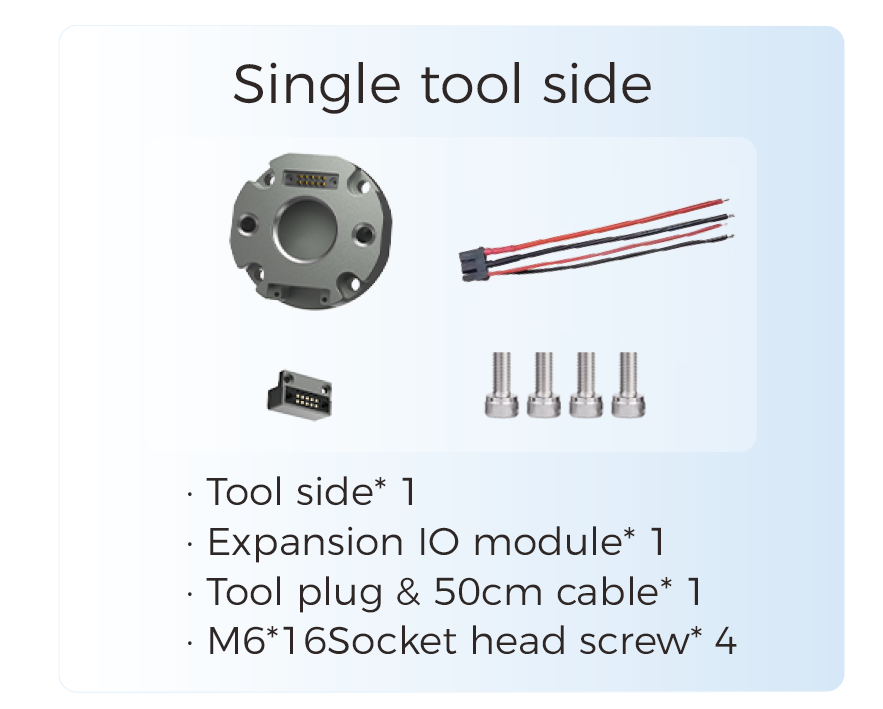

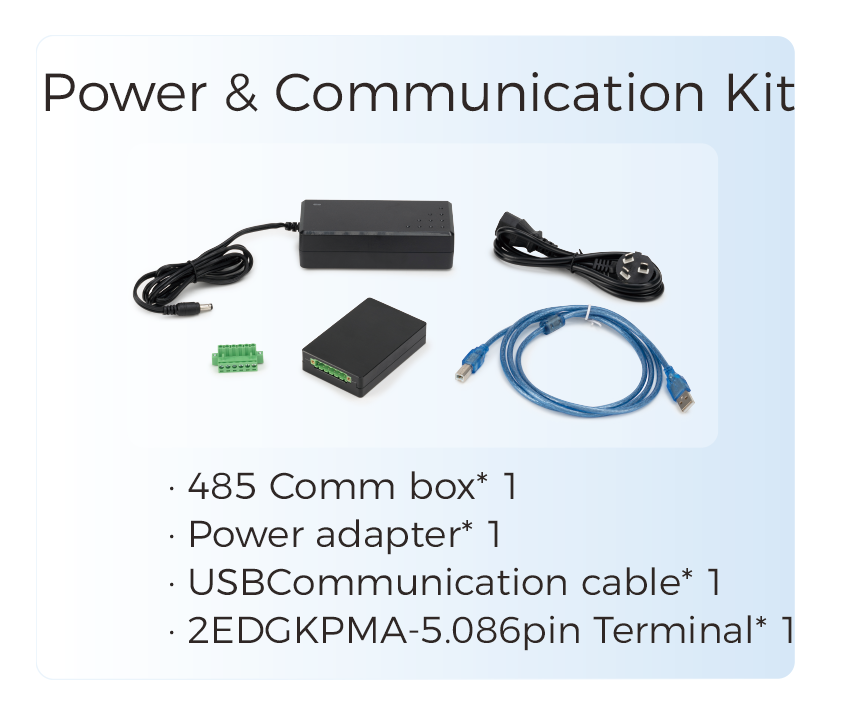

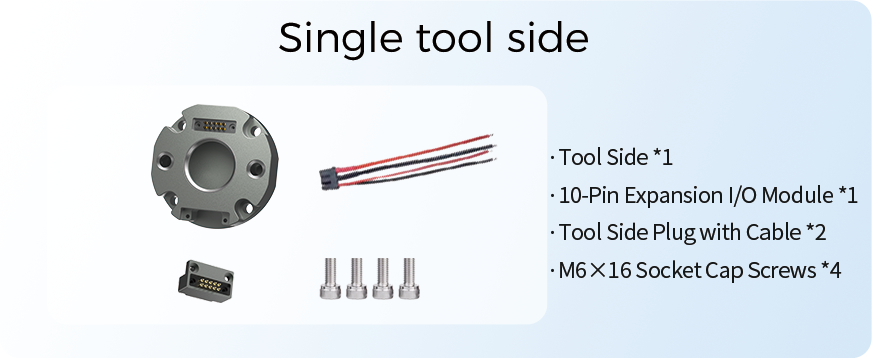

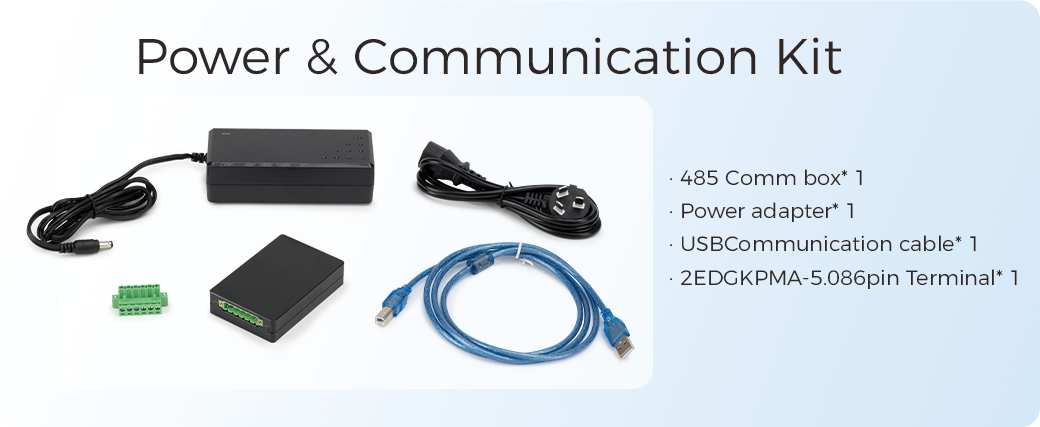

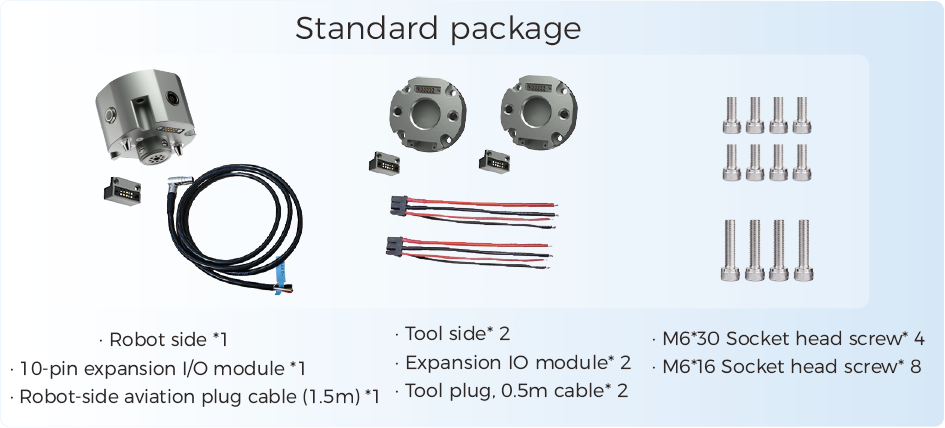

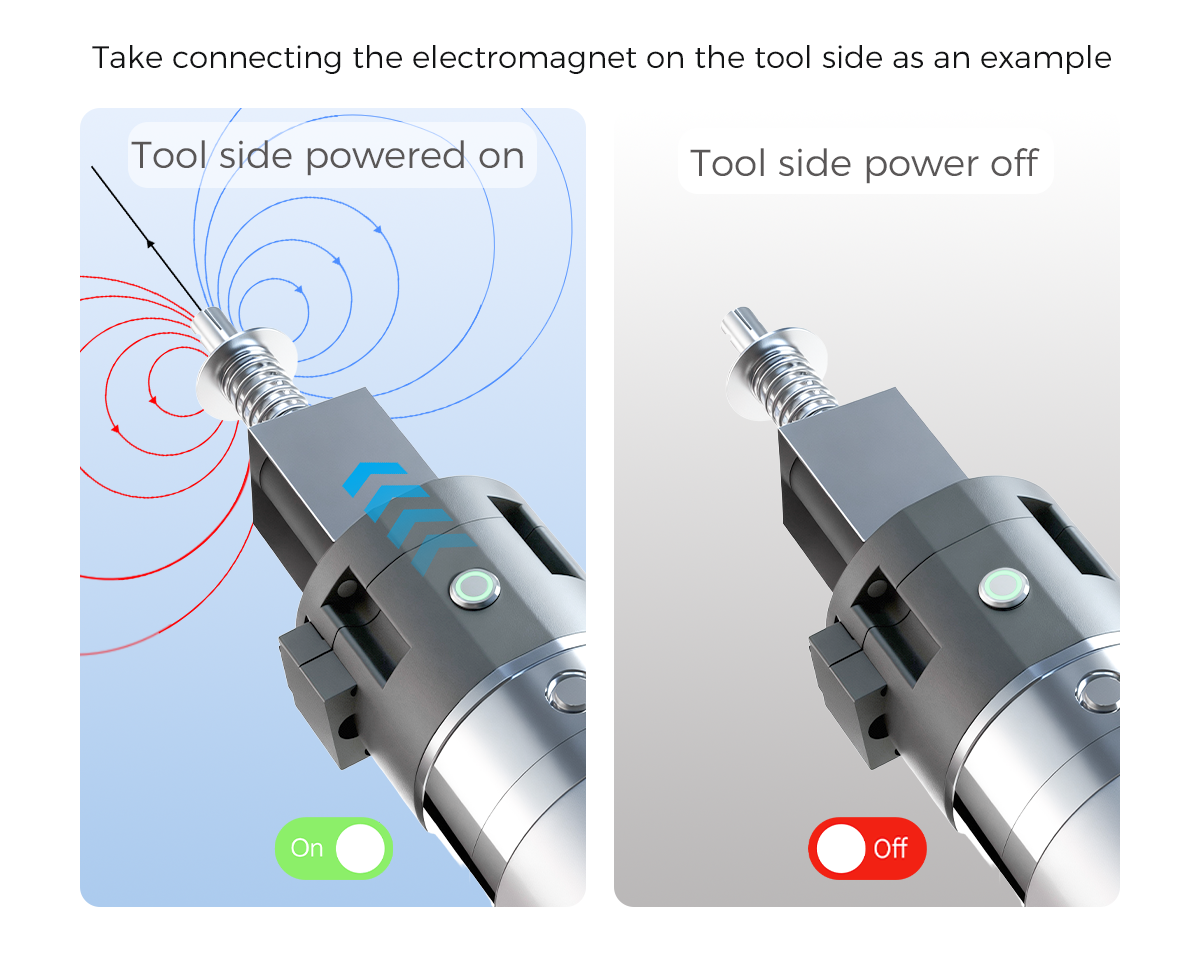

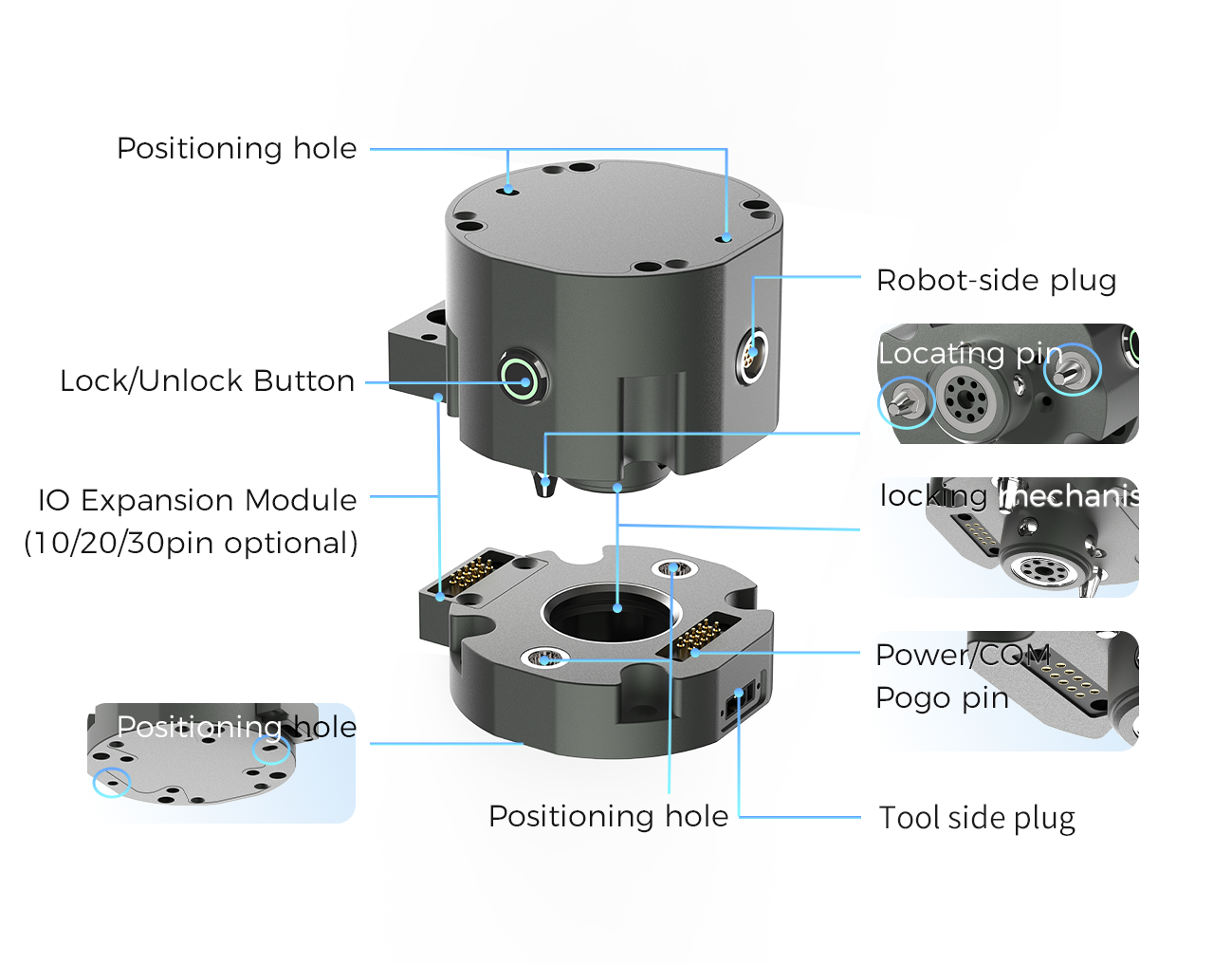

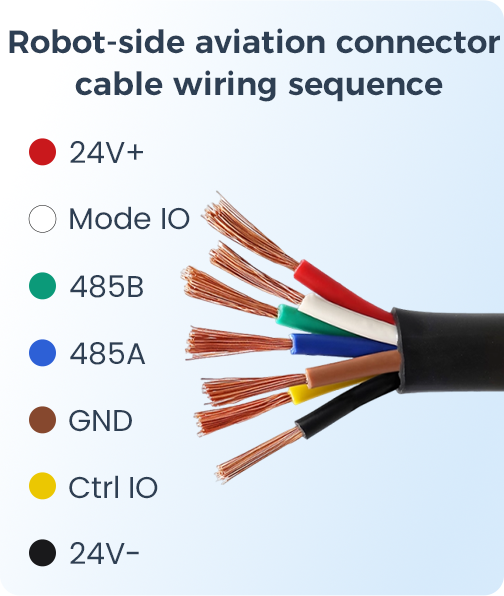

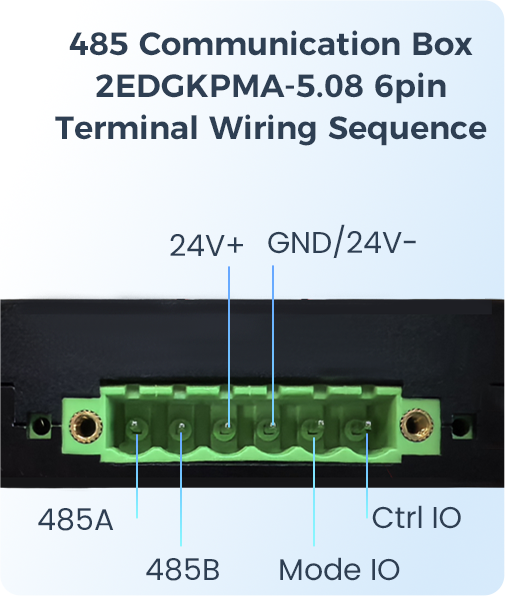

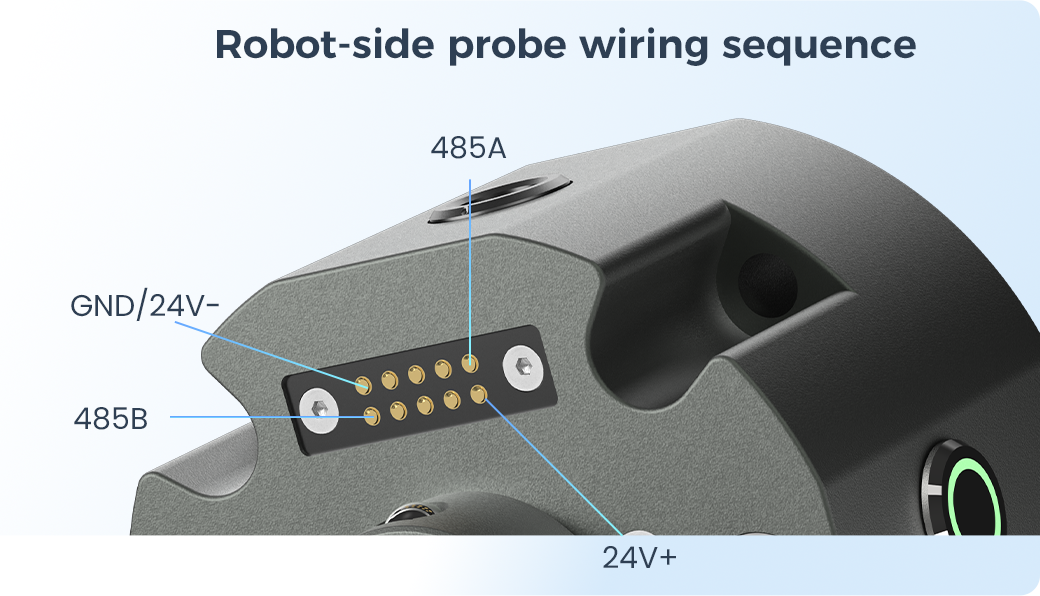

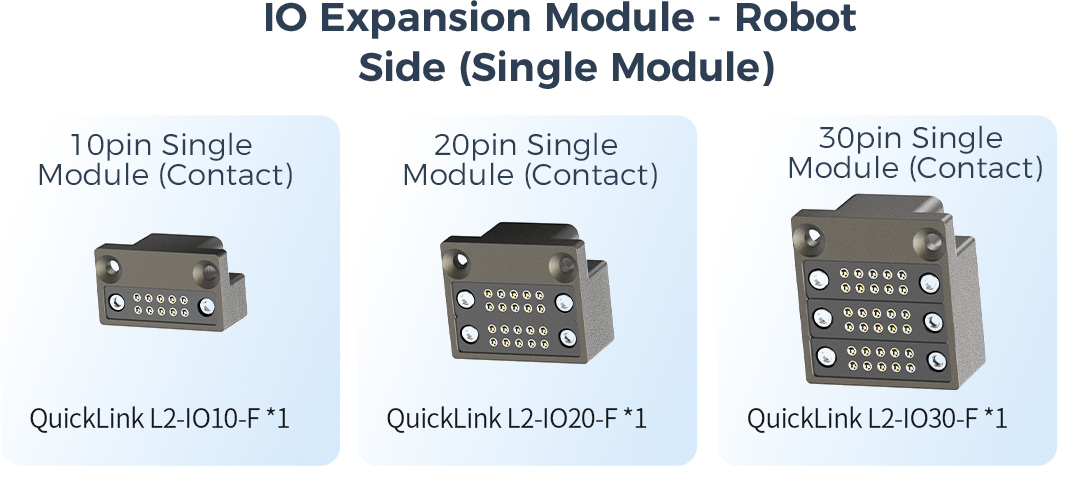

PRODUCT FUNCTION

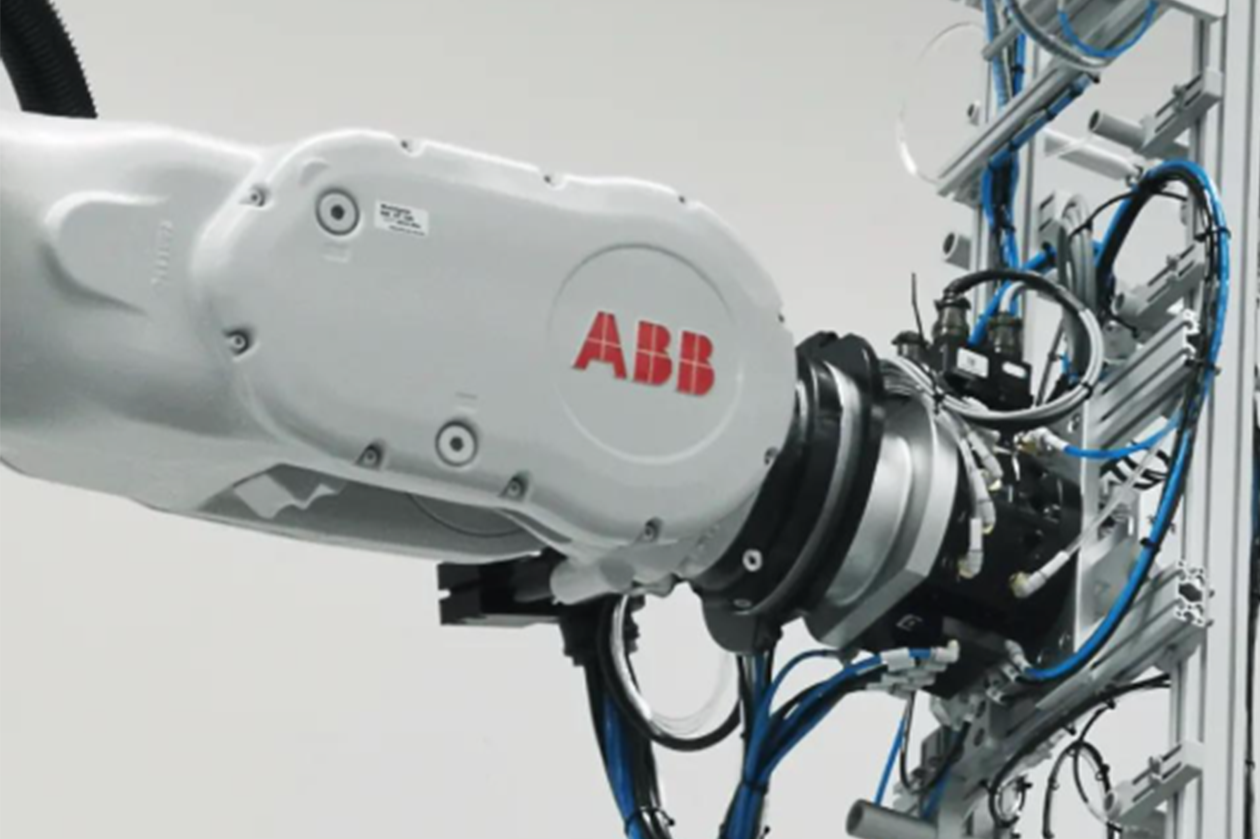

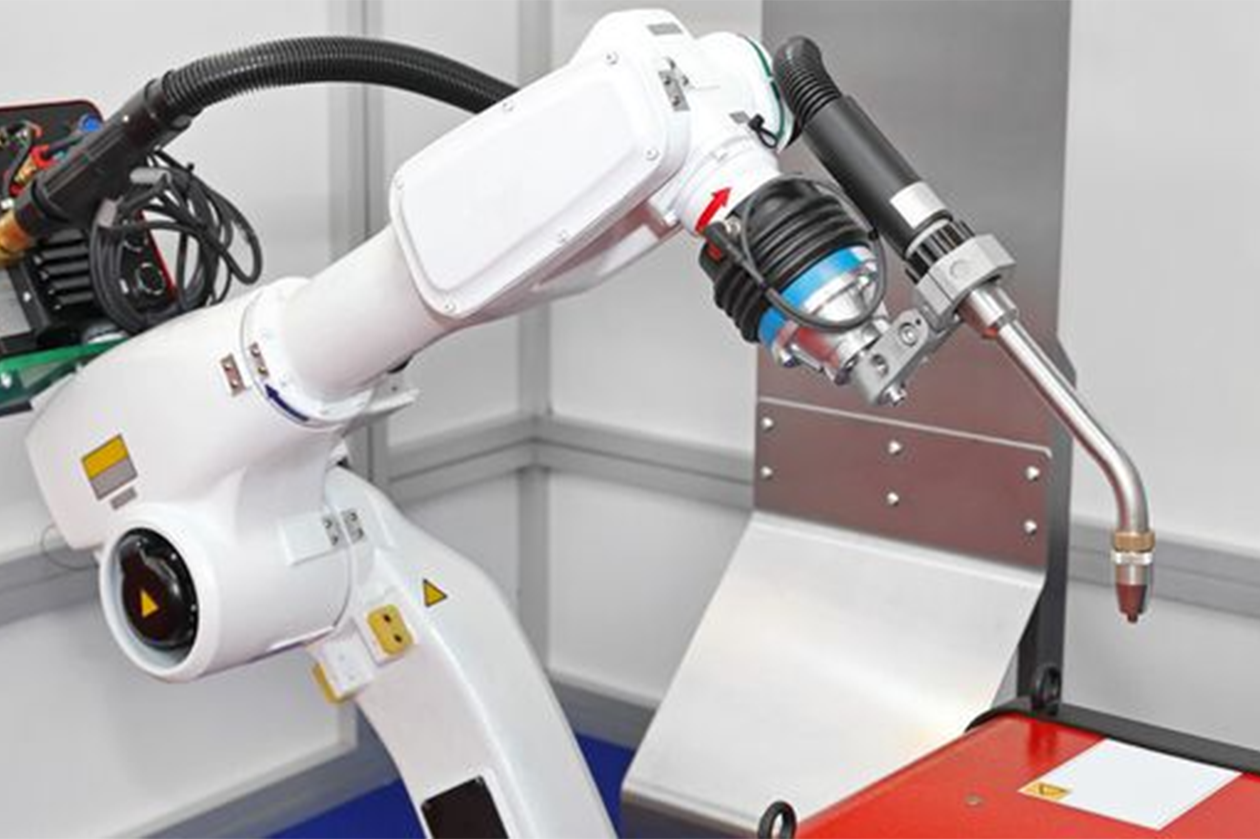

APPLICATION AREA

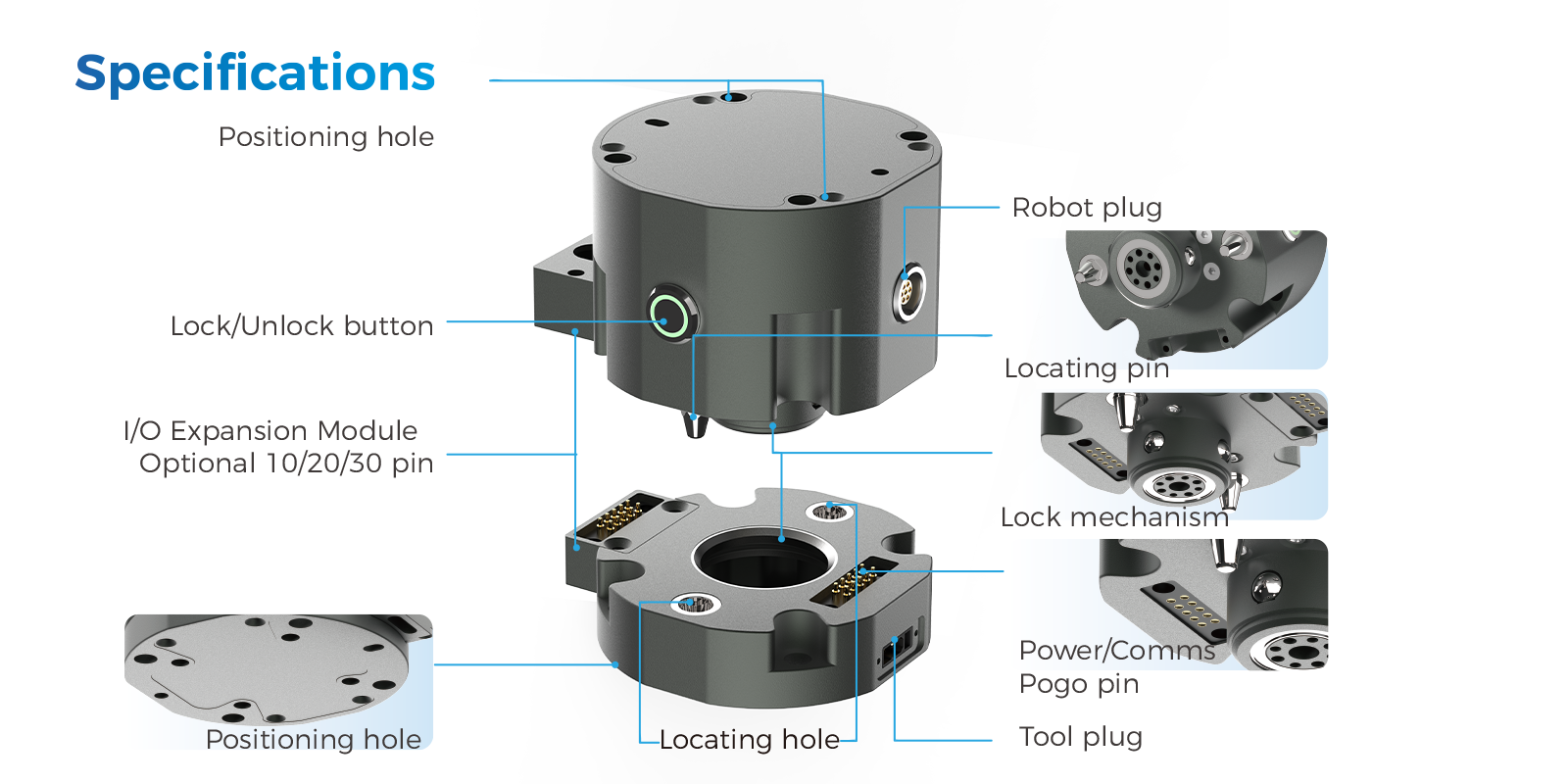

TECHNICAL PARAMETER

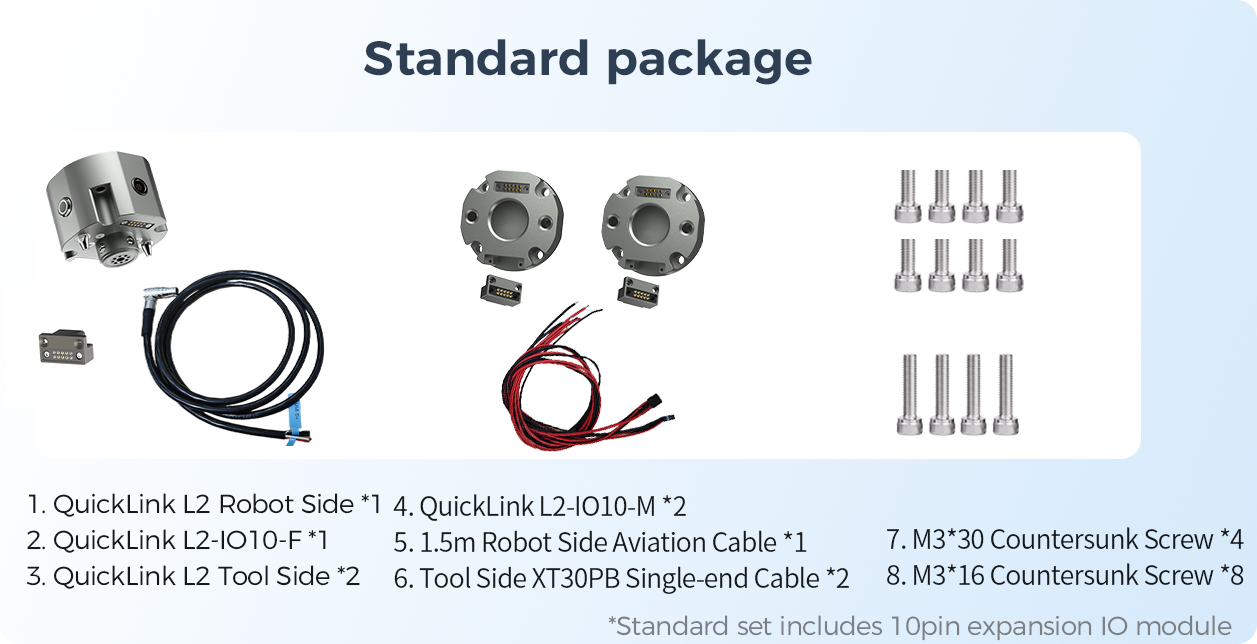

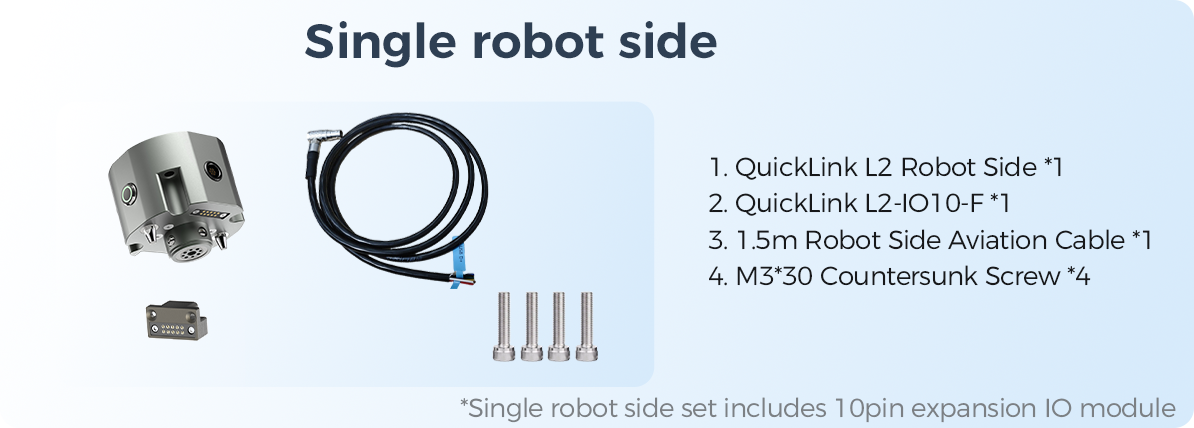

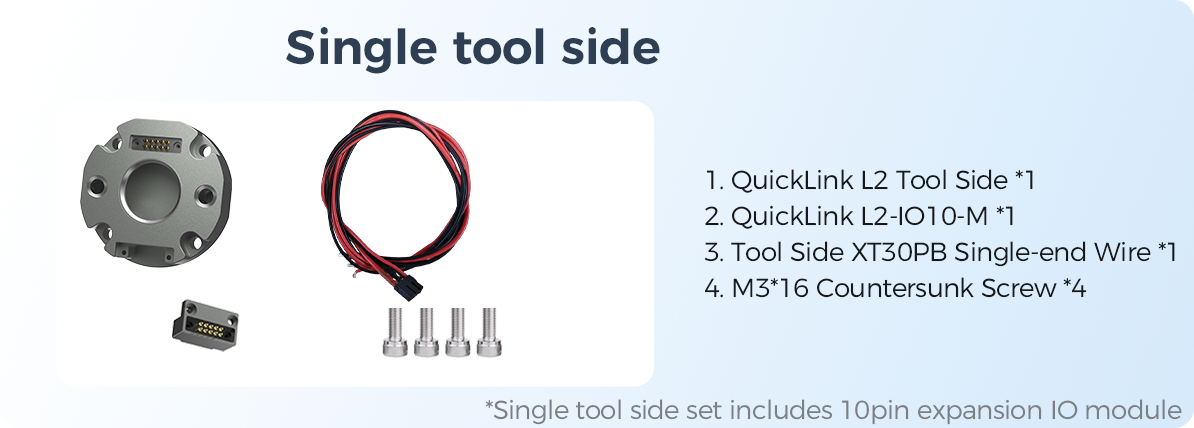

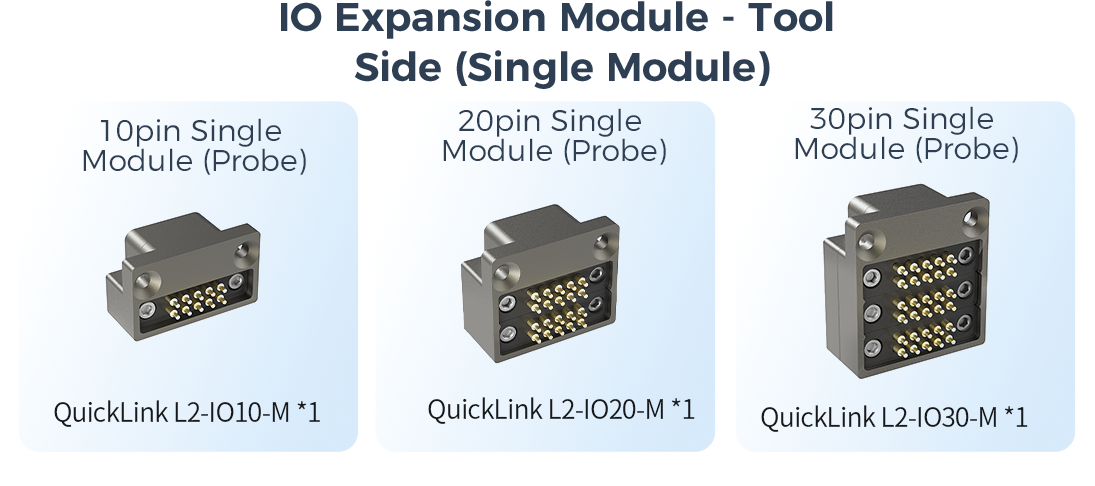

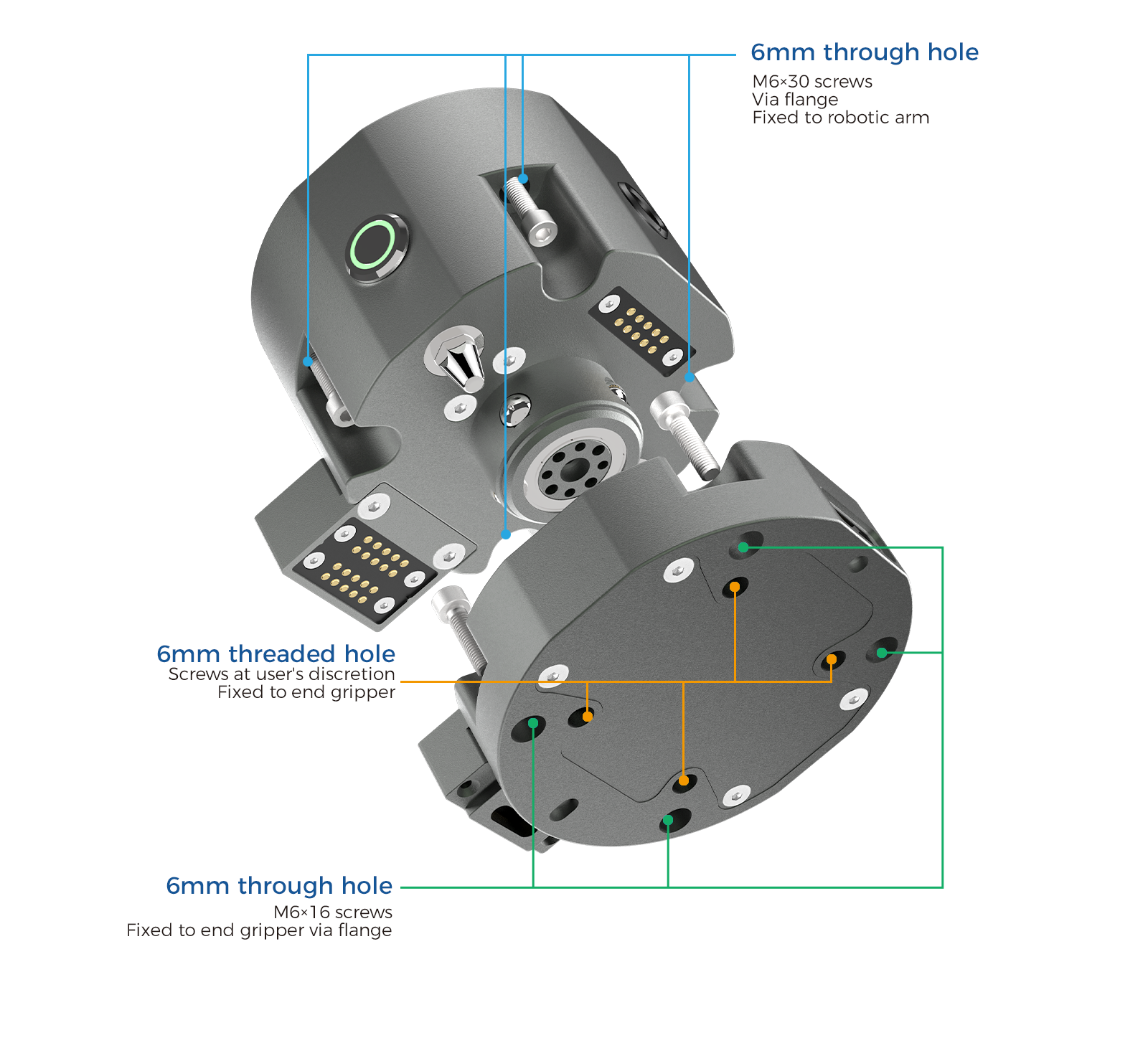

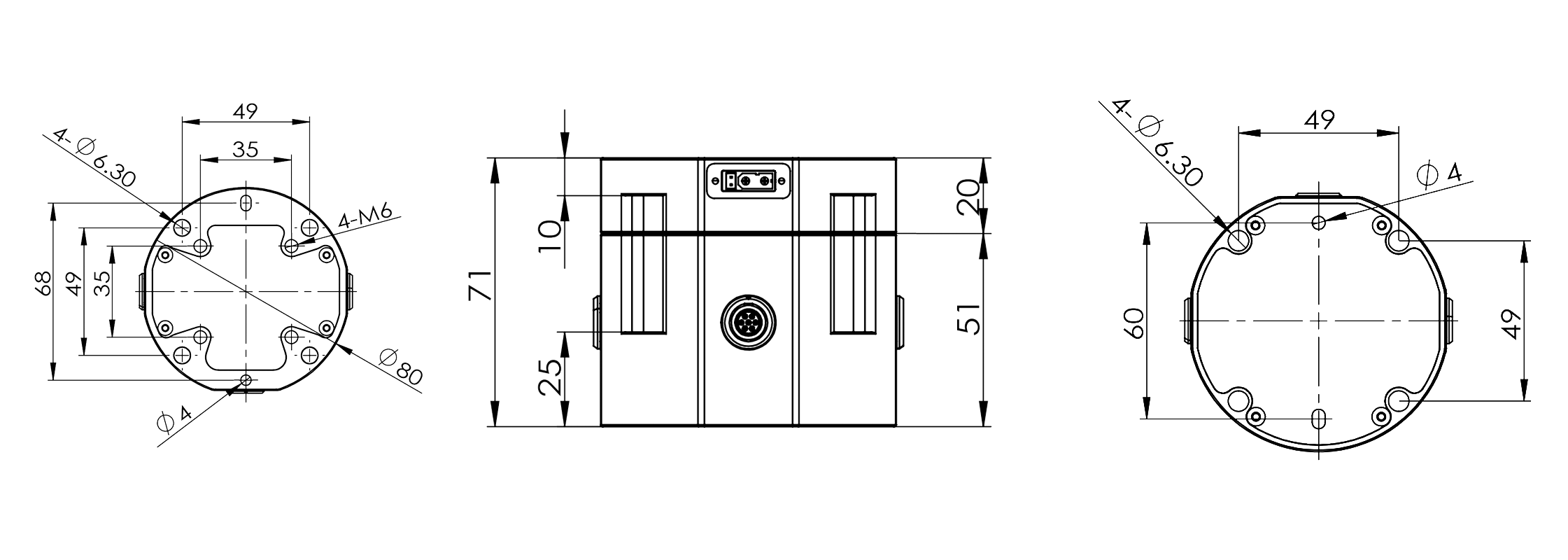

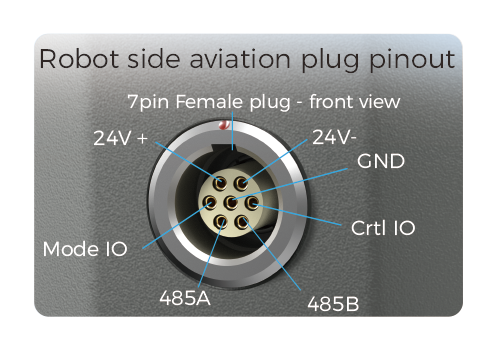

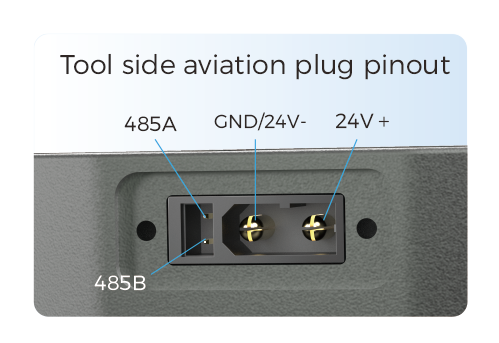

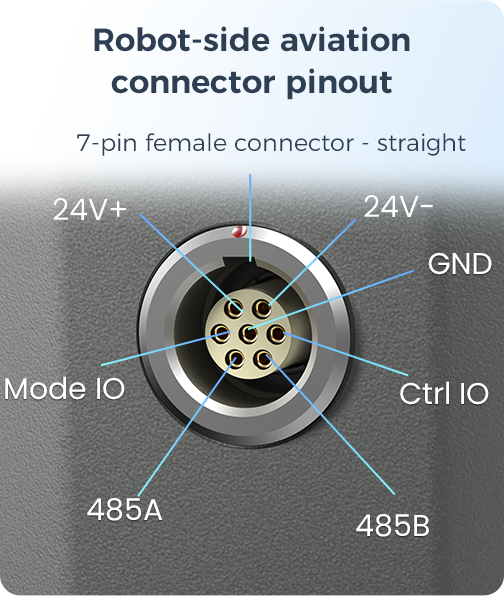

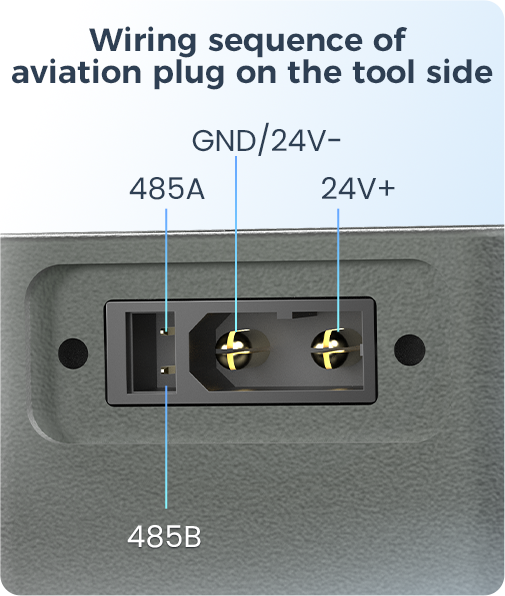

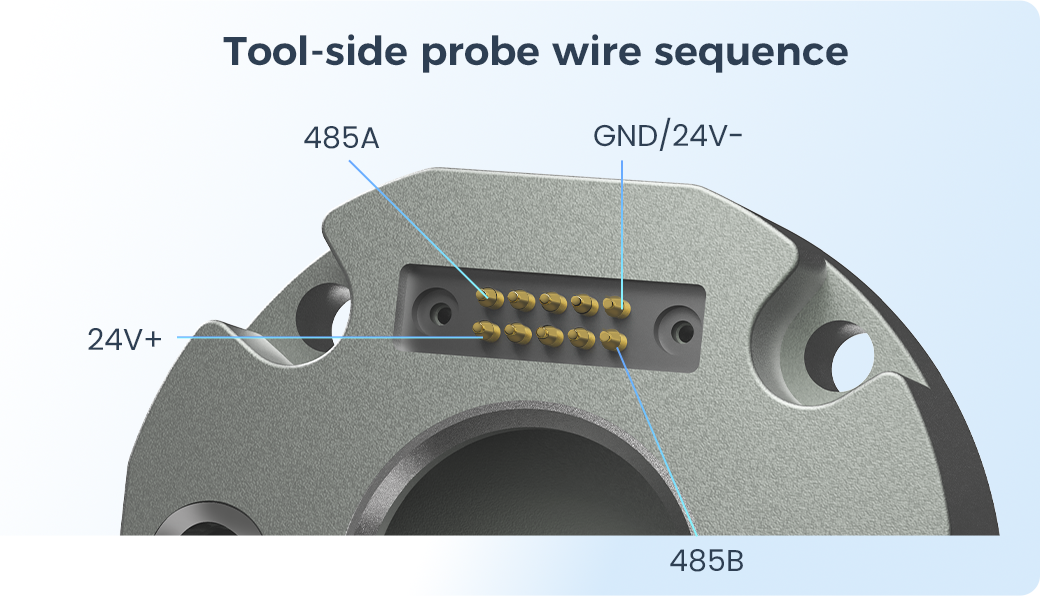

QuickLink Specifications | Parameters | |
Model | Master plate | DZ040-Q01 |
Tool plate | DZ040-T01 | |
Load | Payload capacity | 30kg |
Locking force | 7497N | |
Allowable static moment | 3210N·m | |
Allowable static torque | 1570N·m | |
Size and precision | Dimension | Φ80mm |
Combined thickness | 72mm（Excluding the fixed flange of the robotic arm） | |
Position repeatability | ±0.05mm | |
Air pressure for working | None, electrically driven | |
Locking mechanism | Locking steel ball | |
| Main body | Aluminum alloy |
Locking mechanism | Alloy steel | |
| Temperature | 0- 60℃ |
Humidity | 0-95% | |
Weight | Master side | 0.363kg |
Tool side | 0.207kg | |
Electrical Characteristics | Operating voltage | 24V |
Rated terminal current | 4.2A | |
Rated terminal power | 100W | |
Peak terminal current | 5.2A | |
Peak terminal power | 125W | |
